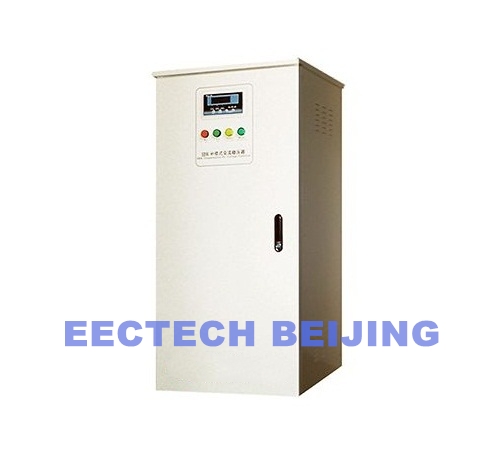

The special voltage regulator for CNC machine tools has anti-high frequency interference, anti-electromagnetic and anti-surge performance. It not only has the functions of phase separation adjustment, rapid adjustment, no noise, etc. The special voltage regulator for CNC machine tools has perfect protection function.
The special voltage regulator for CNC machine tools has anti-high frequency interference, anti-electromagnetic and anti-surge performance. It not only has the functions of phase separation adjustment, rapid adjustment, no noise, etc. The special voltage regulator for CNC machine tools has perfect protection function.
CNC machine tool regulator Technical Parameters
Basic indicator
Protective function
Input voltage
380V ± 20% or wide voltage special definition
Overpressure
Output exceeds rated voltage by 10% (adjustable), delay 3-5 seconds to cut off output power
Output voltage
380V±5% selectable
Undervoltage
Output exceeds rated voltage -15% (adjustable), delay 3-5 seconds to cut off output power
Voltage regulation accuracy
1-5% can be set
Delay
2 seconds to cut off the output power
Frequency
50Hz/60Hz
Short circuit
Cut off the output power when the load device is shorted
Strain time
≤0.05s
Overcurrent
When the rated output current is exceeded, the output power is cut off after 3-5 seconds delay.
Stable schedule
When the input voltage changes by 10% relative to the rated value, the stability time is ≤1s.
Reverse phase
When an error occurs in the three-phase electrical phase sequence, the machine alarms and cuts off the output power (settable)
Missing phase
When there is a phase loss in the three-phase power, the machine alarms and cuts off the output power.
Bypass
Manual or automatic pass-through device for power supply failure or repair
Other indicators
Additional waveform distortion
≤0.1%
Withstand voltage
The whole machine has no breakdown and no arcing at 2000VAC/min.
Noise
<55dB
Insulation resistance
Machine to ground≥2MΩ
Efficiency
More than 95% below 50KVA, more than 98% above 100KVA
EM filter device
Can effectively filter harmonic interference of the power grid (optional configuration)
Relative humidity
20%-90%
Lightning protection device
When the power grid changes instantaneously and inductive lightning strikes, it can protect against inrush current (optional configuration)
Way of working
Long-term continuous unattended work
Monitoring interface
With R232, RS485 interface, remote control, remote signaling, telemetry (optional configuration)
Specification model
Model
Rated Capacity
(KVA)
Rated input current (A)
Three-phase adjustment
SBW-SK -50
50
76
SBW-SK -80
80
121
SBW-SK -100
100
152
SBW-SK -150
150
227
SBW-SK -180
180
274
SBW-SK -225
225
342
SBW-SK -320
320
487
SBW-SK -400
400
608
SBW-SK -500
500
761
SBW-SK -600
600
913
SBW-SK -800
800
1217
SBW-SK -1000
1000
Note: The above are regular models, which can be customized according to customer needs.
For more information, please contact EECTECH
1. The SBW-SK series of special-purpose voltage regulators for CNC machine tools is a market experience. For the different needs of users of CNC machine tools for power safety, a dedicated series of industry-specific voltage regulators have been tailored for users in this industry.
2. The special voltage regulator for CNC machine tools has anti-high frequency interference, anti-electromagnetic and anti-surge performance. It not only has the functions of phase separation adjustment, rapid adjustment, no noise, etc. The special voltage regulator for CNC machine tools has perfect protection function.
