Thyratron tubes equal to international brands

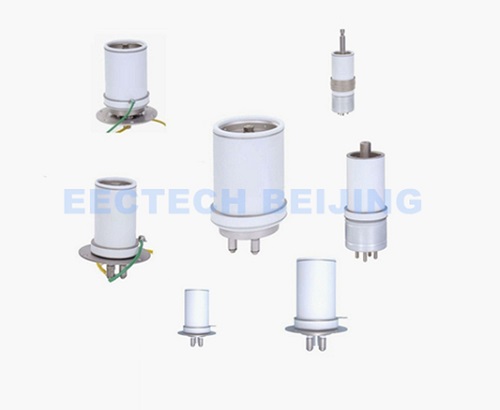

Thyratron tubes equivalent to international brands

1G35P, 1G45P, 2G22P, 3C45, 4C35A, 5C22, 1802, 5949A, 7322, 7620, 7782, 8613, 8765, CV6022, CV8563, CV9080, CX1140, CX1157, CX1159, CX1164, CX1528, CX1551, CX1154L, FX227, FX2505, FX2519A, FX1585, HY-10, HY-32, HY-6302, HY-1A, L-4696, L-4884, L-4885, L-4958, etc

Mainly applications: radar & linac

List price： 0.00

Price： 0.00

Product information

商品描述

Thyratron tubes equivalent to international brands

1G35P, 1G45P, 2G22P, 3C45, 4C35A, 5C22, 1802, 5949A, 7322, 7620, 7782, 8613, 8765, CV6022, CV8563, CV9080, CX1140, CX1157, CX1159, CX1164, CX1528, CX1551, CX1154L, FX227, FX2505, FX2519A, FX1585, HY-10, HY-32, HY-6302, HY-1A, L-4696, L-4884, L-4885, L-4958, etc

Mainly applications: radar & linac

Thyratron tubes

Model

Anode Voltage

Anode Current

Anode Current

L-3
Part Number

E2V
Part Number

PerkinElmer
Part Number

EIA
Part Number

Peak (kV)

Peak (A)

Average (A)

E1689

35

20000

0.5

*

*

*

*

E109

12

3000

0.1

*

*

*

*

E8613
（ZQM2-500/16）

16

500

0.5

L-4884B

8503B

HY-1A

8613

E7620A

20

500

0.5

L-4958

8503AF

HY-10

7620

E7620

20

600

0.5

L-4958

8503AF

HY-10

7620

E101

20

500

0.5

*

*

HY-11

*

E1585

30

600

0.6

*

FX1585

*

*

E7322

25

1000

1.25

L-4885

*

1802

7322

E150

25

1000

1

*

*

*

*

E108

25

5000

2

*

*

*

*

E1551A

33

1000

1.25

*

CX1551

*

*

E1551B

33

1000

1.25

*

*

*

*

E1551C

35

2000

2.2

L-4696

*

HY-32

*

E1154L

35

3000

2

*

CX1154L

*

*

E1536A

50

10000

10

*

CX1536A

*

*

E1159

33

10000

1.25

*

CX1159
CX1140LE

*

*

E1549

35

10000

15

*

CX1549

*

*

E1836A

50

10000

10

*

CX1836A

*

*

ZQM2-400~16

　16

　400

0.50

　

　

　

　

......

　

　

　

　

　

　

　

Please contact EECTECH for more information.

Previous： None

Next： None

Send Inquiry

Model	Anode Voltage	Anode Current	Anode Current	L-3 Part Number	E2V Part Number	PerkinElmer Part Number	EIA Part Number
Model	Peak (kV)	Peak (A)	Average (A)	L-3 Part Number	E2V Part Number	PerkinElmer Part Number	EIA Part Number
E1689	35	20000	0.5	*	*	*	*
E109	12	3000	0.1	*	*	*	*
E8613 （ZQM2-500/16）	16	500	0.5	L-4884B	8503B	HY-1A	8613
E7620A	20	500	0.5	L-4958	8503AF	HY-10	7620
E7620	20	600	0.5	L-4958	8503AF	HY-10	7620
E101	20	500	0.5	*	*	HY-11	*
E1585	30	600	0.6	*	FX1585	*	*
E7322	25	1000	1.25	L-4885	*	1802	7322
E150	25	1000	1	*	*	*	*
E108	25	5000	2	*	*	*	*
E1551A	33	1000	1.25	*	CX1551	*	*
E1551B	33	1000	1.25	*	*	*	*
E1551C	35	2000	2.2	L-4696	*	HY-32	*
E1154L	35	3000	2	*	CX1154L	*	*
E1536A	50	10000	10	*	CX1536A	*	*
E1159	33	10000	1.25	*	CX1159 CX1140LE	*	*
E1549	35	10000	15	*	CX1549	*	*
E1836A	50	10000	10	*	CX1836A	*	*
ZQM2-400~16	16	400	0.50
......
