EECTECH microwave has a series of lens antennas, such as conical horn antenna, pyramid horn antenna, feed radiation lens antenna, point focus lens antenna, etc. The following are several types of display.

Conical Horn Lens Antenna

Model No*	Freq Range (GHz)	Gain (dB)	Minor Level (dB)		Connector	Mouth Diameter (Φmm)	Length (mm)
			E	H
EHD－320LHA50	26.5～40.0	21	≤-22	≤-30	FBP-320	50	80
EHD－320LHA80	26.5～40.0	25	≤-22	≤-30	FBP-320	80	100
EHD－320LHA100	26.5～40.0	27	≤-22	≤-30	FBP-320	100	120
EHD－320LHA150	26.5～40.0	31	≤-22	≤-30	FBP-320	150	170
EHD－320LHA170	26.5～40.0	32	≤-22	≤-30	FBP-320	170	190
EHD－320LHA200	26.5～40.0	33	≤-22	≤-30	FBP-320	200	220
EHD－260LHA50	22.0～33.0	19	≤-22	≤-30	FBP-260	50	80
EHD－260LHA80	22.0～33.0	23	≤-22	≤-30	FBP-260	80	100
EHD－260LHA100	22.0～33.0	25	≤-22	≤-30	FBP-260	100	120
EHD－260LHA150	22.0～33.0	29	≤-22	≤-30	FBP-260	150	170
EHD－260LHA170	22.0～33.0	30	≤-22	≤-30	FBP-260	170	190
EHD－260LHA200	22.0～33.0	31	≤-22	≤-30	FBP-260	200	220
EHD－220LHA80	18.0～26.5	21	≤-22	≤-30	FBP-220	80	100
EHD－220LHA100	18.0～26.5	23	≤-22	≤-30	FBP-220	100	120
EHD－220LHA150	18.0～26.5	27	≤-22	≤-30	FBP-220	150	170
EHD－220LHA170	18.0～26.5	28	≤-22	≤-30	FBP-220	170	190
EHD－220LHA200	18.0～26.5	29	≤-22	≤-30	FBP-220	200	220
EHD－180LHA100	14.5～22.0	22	≤-22	≤-30	FBP-180	100	120
EHD－180LHA150	14.5～22.0	25	≤-22	≤-30	FBP-180	150	170
EHD－180LHA170	14.5～22.0	27	≤-22	≤-30	FBP-180	170	190
EHD－180LHA200	14.5～22.0	28	≤-22	≤-30	FBP-180	200	220
EHD－140LHA150	12.5～18.0	23	≤-22	≤-30	FBP-140	150	170
EHD－140LHA170	12.5～18.0	25	≤-22	≤-30	FBP-140	170	190
EHD－140LHA200	12.5～18.0	26	≤-22	≤-30	FBP-140	200	220
EHD－140LHA250	12.4～18.0	28	≤-22	≤-30	FBP-140	250	270
EHD－120LHA250	10.0～15.0	26	≤-22	≤-30	FBP-140	250	270
EHD－100LHA250	8.2～12.4	25	≤-22	≤-30	FBP-100	250	270

* Represents the model. For the complete part number, please contact us.

Conical Horn Lens Antenna Pattern

---

Pyramid Horn Lens Antenna

Model No*	Freq Range (GHz)	Gain (dB)	Minor Level (dB)		Connector	Mouth Diameter (Φmm)	Length (mm)
			E	H
EHD-140LHA22A	11.9～18.0	22	≤-22	≤-30	FBP-140	138×108	205
EHD-260LHA26A	21.7～33.0	26	≤-22	≤-30	FBP-260	106×106	175

---

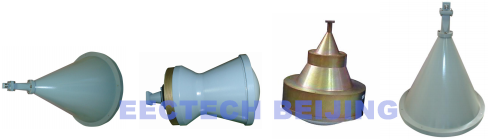

Point Focusing Horn Lens Antenna

Model No*	Freq Range (GHz)	Focal Length (mm)	Connector	Mouth Diameter (Φmm)
EHD-320PLHA	26.5～40.0	50-500	FBP-320	50-300
EHD-260PLHA	21.7～33.0	50-500	FBP-260	50-300
EHD-220PLHA	17.6～26.7	50-500	FBP-220	50-300
EHD-180PLHA	14.5～22.0	50-500	FBP-180	50-300
EHD-140PLHA	11.9～18.0	80-700	FBP-140	50-400
EHD-120PLHA	9.84～15.0	80-700	FBP-120	50-400
EHD-100PLHA	8.2～12.4	80-700	FBP-100	50-400
EHD-84PLHA	6.57～9.99	80-900	FBP-84	50-500
EHD-70PLHA	5.85～8.2	80-900	FBP-70	50-500
EHD-58PLHA	4.9～7.0	80-900	FBP-58	50-500
EHD-48PLHA	4～6	80-900	FBP-48	50-500
EHD-40PLHA	3.3 ～4.9	80-900	FBP-40	50-500
EHD-32PLHA	2.6～4	80-900	FBP-32	50-500
