Characteristics:
Full welded structure to ensure high reliable electrical contact; high performance and high ripple resistance; meet RoHS requirements.
Applications:
UPS, Frequency Converter, Industrial Driver, Medical Devices, Servo Motor, High performance welder.
Characteristics:
Full welded structure to ensure high reliable electrical contact; high performance and high ripple resistance; meet RoHS requirements.
Applications:
UPS, Frequency Converter, Industrial Driver, Medical Devices, Servo Motor, High performance welder.
EECTECH Screw lead aluminum electrolytic capacitors
Capacitance range (bolt type) : 1000uF - 27000uF
Voltage range : 200V - 700V
Classifications of Characteristic:
High performance, large capacitance, long life, high ripple current withstand, high voltage, small volume/size.
250V screw lead aluminum electrolytic capacitors
Basic information
250V dc Screw/Bolt Terminal
Rated Capacitance ( uF )
4700
15000
22000
Temperature (℃)
85
85
85
Lifetime (h)
2000
2000
2000
Net Weight≈ (g)
1500
600
2260
Package Size(mm)
64.3*96
76.9*105
91*157
Fixed (Clamp, pc)
1
1
1
Clamp Fitting (Screw, 2pcs)
M5*12
M6*12
M5*12
Packing (pcs/carton)
15
12
8
Electrical Parameters
Rated Voltage (V. dc)
250
250
250
Surge voltage (V. dc)
300
300
300
@20℃, 120Hz
Rated Capacitance ( uF )
4700
15000
22000
Tolerance
±20%
±20%
±20%
TGD (max.)
0.2
0.2
0.2
Typical ESR (MΩ)
19
IL (mA, Max. 5 min.)
5
5
5
@85℃, 120Hz
Rate Ripple Current (A)
7.2
Others
Tips: Hav't find your specifications for 250V capacitor? please contact EECTECH for more information, tailor-made service also available.
Packing style
Tips: According to the diameter of electrolytic capacitors, the number of packages per box can be divided into six types in the table below.
Electrolytic Capacitor Diameter (mm)
Quantity per box (PCS)
51.6
22
64.3
15
76.9
12
77
12
91.0
8
101.0
6
Structure of 250V Bolted Aluminum Electrolytic Capacitor

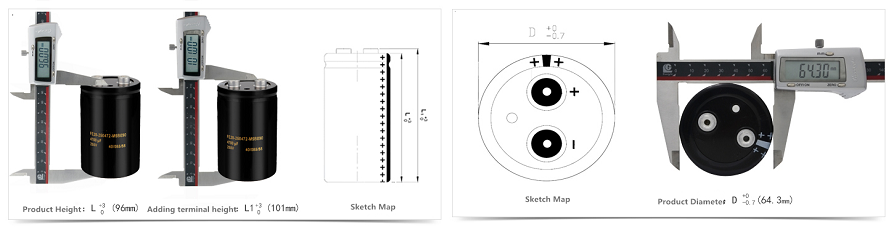

Dimension of 250V, 4700uF Bolted Electrolytic Capacitor
Dimension of 250V, 15000uF Bolted Electrolytic Capacitor
Dimension of 250V, 22000uF Bolted Electrolytic Capacitor
