Features
1. Flame-retardant,rectangular plastic case.Small size and light weight.
2. Low loss,excellent self-healing performance and reliability.
Applications
Oervoltage protection for thyristor rectification circuit in clectric in electric locomotive.
Features
1. Flame-retardant,rectangular plastic case.Small size and light weight.
2. Low loss,excellent self-healing performance and reliability.
Applications
Oervoltage protection for thyristor rectification circuit in clectric in electric locomotive.
Electrical Specifications
Capacitance(Cn): 0.5μF ~ 2.5μF
Capacitance Tolerance : ±5%
Voltage Range(Un dc): 800Va.c. ~ 1800Va.c
Test Voltage between terminals: 2.5UN d.c.,10s,or 1.5UN a.c.,10s
Reference Standard: IEC 61071-2007
Typical specifications
Type
UN
Va.c.
CN
μF
H
mm
ESR
mΩ
Ls
nH
CBB80B
800
1
50
≤6
≤25
CBB80B
1000
2.5
75
≤6
≤35
CBB80B
1100
0.5
50
≤6
≤25
CBB80B
1100
1
55
≤6
≤25
CBB80B
1400
0.5
50
≤6
≤25
CBB80B
1400
1
55
≤6
≤25
CBB80B
1400
2
75
≤9
≤35
CBB80B
1800
0.5
75
≤9
≤35
CBB80B
1800
1
75
≤9
≤35

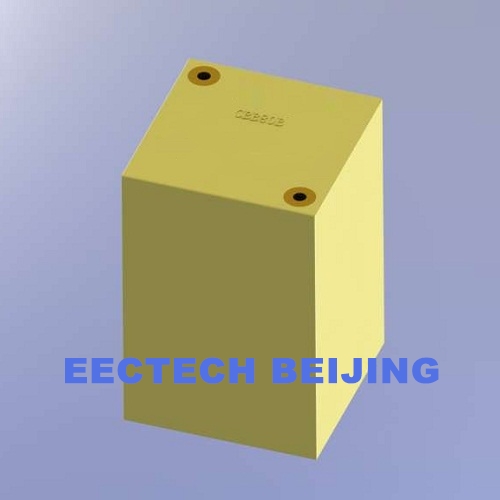

CBB80B Snubber Capacitor outline drawing
For more details, please contact EECTECH and discuss your needs with us.
Tailor made service available upon request.
