Multi turn wire wound potentiometer series

Wire-wound potentiometer is a kind of potentiometer whose winding is a resistor. The function of wire-wound presetting potentiometer is the same as that of glass glaze presetting potentiometer. Wire-wound potentiometers with knobs need to be rotated repeatedly.

List price： 0.00

Price： 0.00

Product information

商品描述

Wire-wound potentiometer is a kind of potentiometer whose winding is a resistor. The function of wire-wound presetting potentiometer is the same as that of glass glaze presetting potentiometer. Wire-wound potentiometers with knobs need to be rotated repeatedly.

Description:
Product details can be downloaded by clicking PDF;
To view the product map, you can click on each IMAGE hyperlink

Electric Locator-Multi turn wire wound potentiometer series

IMAGE NAME MODEL RATED POWER RESISTANCE RANGE REMARKS PDF

Multi turn wire wound potentiometer WR2210 2W 100Ω～50KΩ Adjustment: 10 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±150ppm；Linear accuracy: ±0.25%

Multi turn wire wound trimmer WT12 0.75W 47Ω～22KΩ Adjustment: 50 ±5 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±50ppm

Multi turn wire wound trimmer WT22 0.75W 50Ω～10KΩ Adjustment: ≥20 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±50ppm

Multi turn wire wound trimmer WT24 0.75W 20Ω～5KΩ Adjustment: 25 ±1 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±50ppm

Multi turn wire wound trimmer TD083 0.75W 10Ω～20KΩ Adjustment: 25 ±1 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±100ppm

Multi turn wire wound trimmer WXWX 0.5W 4.7Ω～47KΩ Adjustment: ≥28 turns；Resistance accuracy: ±10%；Temp. coefficient: ≤ ±250ppm

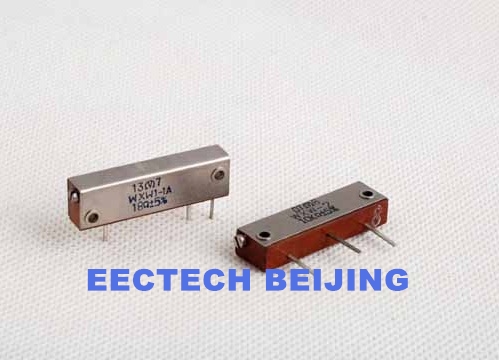

Multi turn wire wound trimmer WXW1-1A WXW-2 WXW-3 WXW-4 1W 10Ω～22KΩ Adjustment: ≥35 turns；Resistance accuracy: ±10%,±5%；Temp. coefficient: ≤ ±250ppm

Multi turn wire wound potentiometer PD2210 PD2205 PD2203 2W 100Ω～100KΩ Adjustment: 10,5,3 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±100ppm；Linear accuracy: ±0.25%

Multi turn wire wound potentiometer WXD1-11 12 1W WXD1-11:33Ω～15KΩ;WXD1-12:56Ω～22KΩ Adjustment: 5,3 turns；Resistance accuracy: ±10%,±5%；Linear accuracy: ±0.3%,±0.5%,±1%,±2%；

Multi turn wire wound potentiometer WXD3-13 13A 2W 100Ω～56KΩ Adjustment: 10 turns；Resistance accuracy: ±10%,±5%；Linear accuracy: ±0.3%,±0.5%,±1%,±2%

Multi turn wire wound potentiometer WXD221 WXD222 WXD221：2W，WXD222：1W WXD221：100Ω～20KΩ，WXD222：50Ω～10KΩ Adjustment: 10, 5 turns；Resistance accuracy: ±10%,±5%；Temp. coefficient: ≤ ±250ppm；Resistance accuracy: ±1；

Multi turn wire wound potentiometer 3590S 2W 200Ω～100KΩ Adjustment: 10 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±50ppm；Linear accuracy: ±0.25%

For more information, you can also contact EECTECH

NAME	MODEL	RATED POWER	RESISTANCE RANGE	REMARKS
Multi turn wire wound potentiometer	WR2210	2W	100Ω～50KΩ	Adjustment: 10 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±150ppm；Linear accuracy: ±0.25%
Multi turn wire wound trimmer	WT12	0.75W	47Ω～22KΩ	Adjustment: 50 ±5 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±50ppm
Multi turn wire wound trimmer	WT22	0.75W	50Ω～10KΩ	Adjustment: ≥20 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±50ppm
Multi turn wire wound trimmer	WT24	0.75W	20Ω～5KΩ	Adjustment: 25 ±1 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±50ppm
Multi turn wire wound trimmer	TD083	0.75W	10Ω～20KΩ	Adjustment: 25 ±1 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±100ppm
Multi turn wire wound trimmer	WXWX	0.5W	4.7Ω～47KΩ	Adjustment: ≥28 turns；Resistance accuracy: ±10%；Temp. coefficient: ≤ ±250ppm
Multi turn wire wound trimmer	WXW1-1A WXW-2 WXW-3 WXW-4	1W	10Ω～22KΩ	Adjustment: ≥35 turns；Resistance accuracy: ±10%,±5%；Temp. coefficient: ≤ ±250ppm
Multi turn wire wound potentiometer	PD2210 PD2205 PD2203	2W	100Ω～100KΩ	Adjustment: 10,5,3 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±100ppm；Linear accuracy: ±0.25%

Previous： None

Next： None

Send Inquiry

Multi turn wire wound potentiometer	WXD1-11 12	1W	WXD1-11:33Ω～15KΩ;WXD1-12:56Ω～22KΩ	Adjustment: 5,3 turns；Resistance accuracy: ±10%,±5%；Linear accuracy: ±0.3%,±0.5%,±1%,±2%；
Multi turn wire wound potentiometer	WXD3-13 13A	2W	100Ω～56KΩ	Adjustment: 10 turns；Resistance accuracy: ±10%,±5%；Linear accuracy: ±0.3%,±0.5%,±1%,±2%
Multi turn wire wound potentiometer	WXD221 WXD222	WXD221：2W，WXD222：1W	WXD221：100Ω～20KΩ，WXD222：50Ω～10KΩ	Adjustment: 10, 5 turns；Resistance accuracy: ±10%,±5%；Temp. coefficient: ≤ ±250ppm；Resistance accuracy: ±1；
Multi turn wire wound potentiometer	3590S	2W	200Ω～100KΩ	Adjustment: 10 turns；Resistance accuracy: ±5%；Temp. coefficient: ≤ ±50ppm；Linear accuracy: ±0.25%
