EECTECH ETD030090,ETD045090 pot type High Voltage RF Capacitors
Equivalent to TD030090,TD045090 caps.

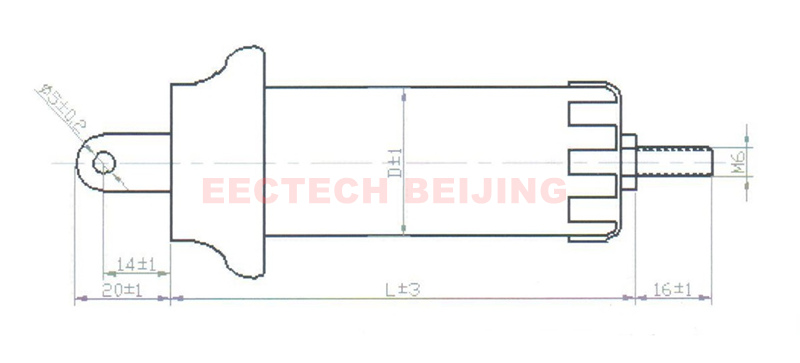

EQUIVALENT MODEL	Capacitance		Temperature quotiety	DC Voltage	Rated power	Dissipation factor	Insulation resistance	Dimensions (mm)
	pF	Tolerance	(ppm/℃)	(KV)	(KVA)			D	L
ETD030090 (TD030090)	50	M (±20%)	+100(A)	10	14	tgδ ≤6*10-4	Ri ≥1*1010Ω	30	97
	500		-750 (U)		18
	600
	800
	1000
	1200			9
	1600
ETD045090 (TD045090)	160		+100(A)	10	22			45	97
	800		-750 (U)		28
	1000
	1600
	2500			9
